• Fibre optical isolation shields EEG signal from power line interference better than ordinary cable, and can transmit safe and stable EEG signals at high speed.

• Wi-Fi enables long distance data transmission and takes out the hassle of cable connections between the amplifier and the PC.

• 24 bits A/D conversion rate and sampling rate up to 512Hz.

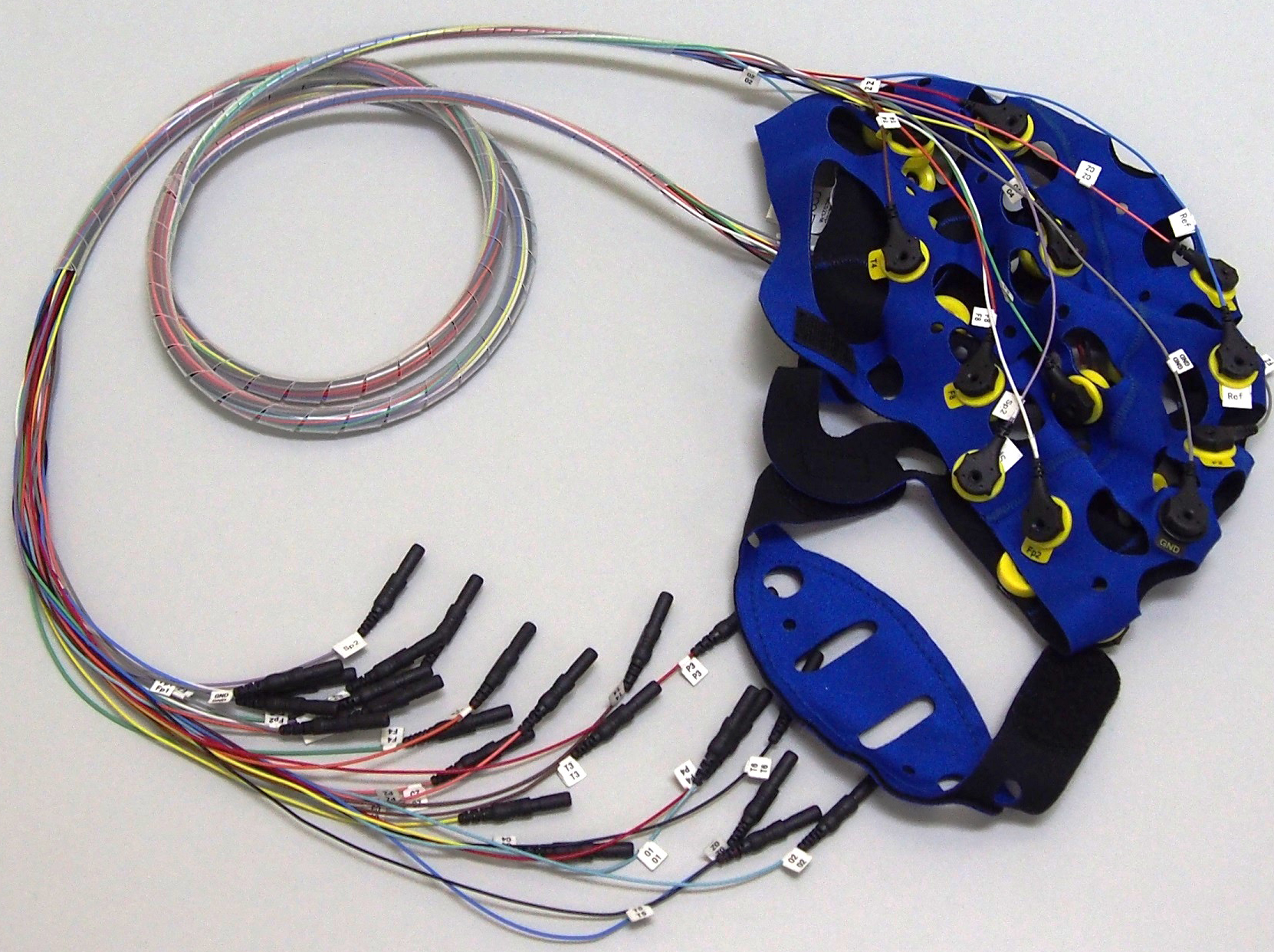

• Head-box design to access single shielded cup/clip electrodes with touch proof connectors (1.5mm).

• Built-in impedance testing function and automatic calibration (both sine wave and square wave);

• DC or battery power operation ensures high signal quality by eliminating virtually all noise from the power line.

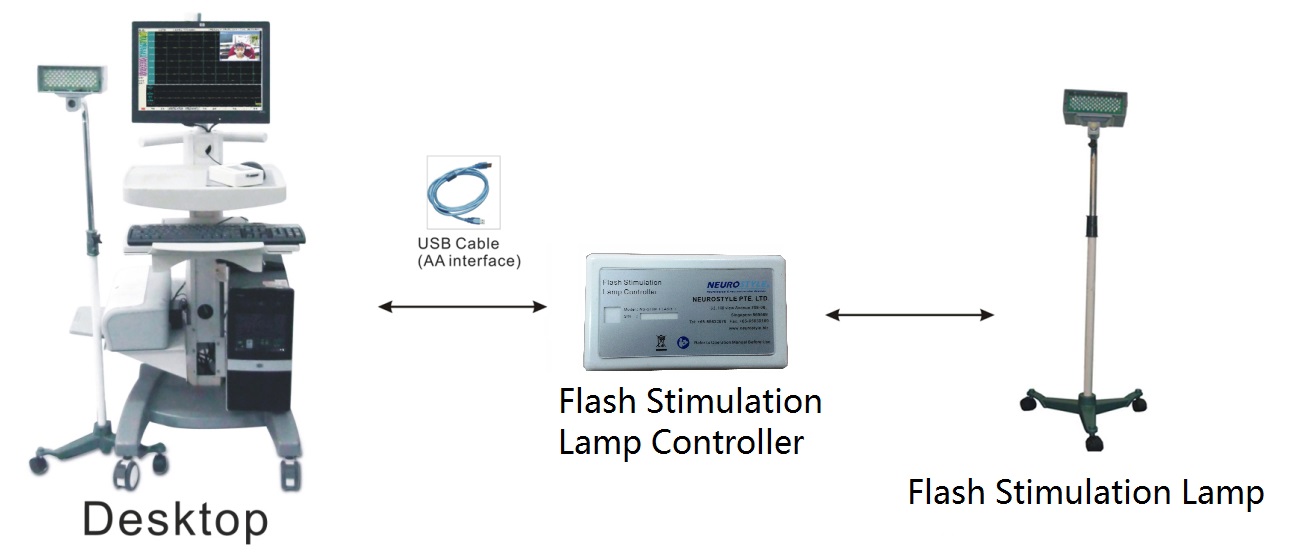

• Optional flash / photic stimulation module can be installed to evoke patient’s epilepsy seizure. Flash stimulation can be synchronized to work with EEG waveform acquisition, and its frequency and timing can be set arbitrarily.

• Synchronized video monitoring (Optional) controllable through the software and infra-red lamp to support night monitoring.
