EEG --> Sleep EEG (EEG-PSG)

This configuration provides sleep EEG / Polysomnography (PSG) recording capability on top of routine EEG examination and video recording (optional).

Features & Advantages

• Synchronized EEG examination and PSG recording, provide various channel configuration for different clinical application.
• Video signal and EEG signal can be synchronously collected, edited and displayed with optional video system.
• Optional flash / photic stimulation module can be installed to evoke patient’s epilepsy seizure. Flash stimulation can be synchronized to work with EEG waveform acquisition, and its frequency and timing can be set arbitrarily.
• Expandable channels for PSG recording:

1. Mono-polar EOG
2. 3 bipolar EMG ( 1 for chin movement and 2 for leg movement)
3. Bipolar ECG
4. SpO2
5. Nasal Airflow
6. Thoracic and abdominal respiration
7. Snore



Accessories

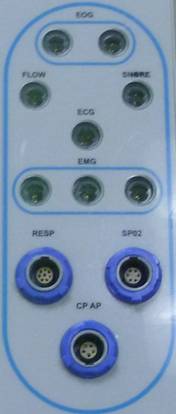

PSG Module on Amplifier	EOG, EMG Cable 1: Active; 2: Reference.
	FLOW (Airflow) cable
SpO2 Probe	Snore Probe
ECG Cable	RESP Respiration and Body position cable
